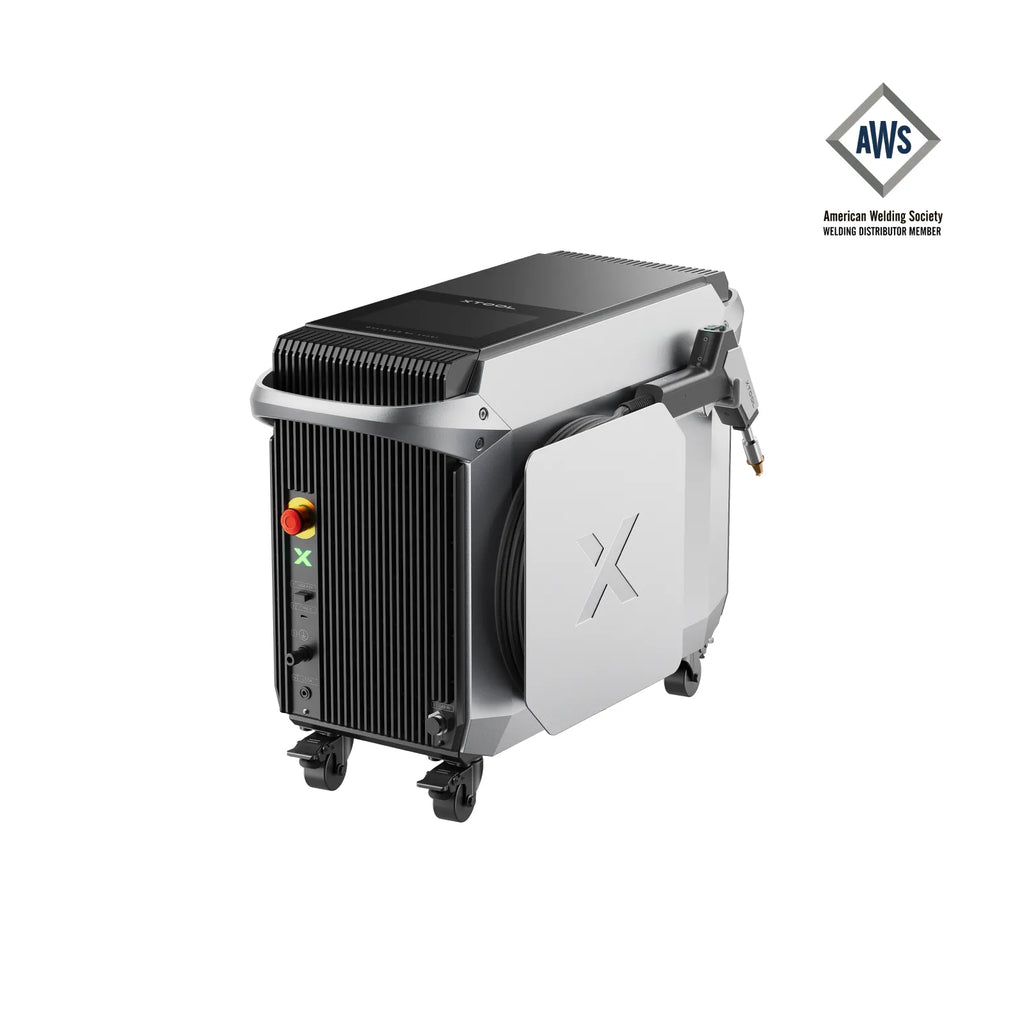

xTool MetalFab Laser Welder – 800W & 1200W Fiber Laser Welding Machine

Upgrade your metal fabrication workflow with the xTool MetalFab Laser Welder, a next-generation fiber laser welding system designed to make professional metal welding faster, cleaner, and easier to learn.

Available in 800W and 1200W configurations, xTool MetalFab combines powerful fiber laser technology with an ultra-light integrated welding gun, automatic wire feeding, an intuitive 8-inch smart touchscreen, and 108+ built-in parameters to simplify setup for a wide range of compatible metals and applications.

Whether you're running a fabrication shop, metalworking business, automotive operation, manufacturing facility, maker space, or expanding your business into professional metal fabrication, MetalFab delivers serious capability in a compact system.

🔥 CHOOSE YOUR xTOOL METALFAB LASER WELDER

xTool MetalFab 800W Laser Welder

An excellent option for small businesses, fabrication shops, and professionals who want the speed and precision of laser welding in a more accessible configuration.

The 800W model can weld compatible materials including:

• Carbon steel / low-alloy steel up to approximately 4 mm
• Alloy and tool steel up to approximately 4 mm
• Stainless steel up to approximately 4 mm
• Galvanized sheet up to approximately 4 mm
• Aluminum alloy up to approximately 2 mm
• Brass up to approximately 2 mm
• Titanium alloy up to approximately 4 mm
• And additional compatible metals

xTool MetalFab 1200W Laser Welder

Need additional welding capacity?

Step up to the 1200W MetalFab for increased power and production capability.

The 1200W configuration can weld compatible materials including:

• Carbon steel / low-alloy steel from approximately 0.2–5 mm
• Alloy and tool steel from approximately 0.2–5 mm
• Stainless steel from approximately 0.2–5 mm
• Galvanized sheet from approximately 0.2–5 mm
• Aluminum alloy from approximately 0.2–4 mm
• Brass from approximately 0.2–4 mm
• Titanium alloy from approximately 0.2–5 mm
• And additional compatible metals

Material capabilities vary based on material composition, setup, shielding gas, technique, settings, and other processing conditions.

⚡ UP TO 8X FASTER THAN TRADITIONAL WELDING

Spend less time welding and more time producing.

xTool positions MetalFab laser welding as significantly faster than traditional TIG/MIG welding for appropriate thin-metal applications.

According to xTool:

1200W MetalFab: Up to approximately 4X–8X faster

800W MetalFab: Up to approximately 2X–4X faster

The reduced heat input and concentrated laser energy can also help produce clean, controlled welds while reducing the extensive post-processing associated with some traditional welding methods.

🎯 DESIGNED FOR THIN-METAL FABRICATION

MetalFab is especially powerful when working with thin metal.

xTool positions the system for approximately 0.2–5 mm metal applications with the 1200W configuration, making it an exciting solution for fabrication businesses that routinely work with sheet metal and detailed assemblies.

Applications can include:

• Stainless steel fabrication
• Carbon steel fabrication
• Sheet metal projects
• Automotive components
• Metal furniture
• Signs
• Custom enclosures
• Cabinets
• Decorative metalwork
• Kitchen equipment
• Prototypes
• Repair work
• Manufacturing
• Custom metal products
• And more

🖐️ ULTRA-LIGHT 550G WELDING GUN

A welding system is only as useful as the tool you have to operate.

xTool designed MetalFab with an approximately 550g ultra-light integrated welding gun, helping make extended welding work more manageable.

The gun also features a 5-second quick-release design, allowing users to switch workflows efficiently.

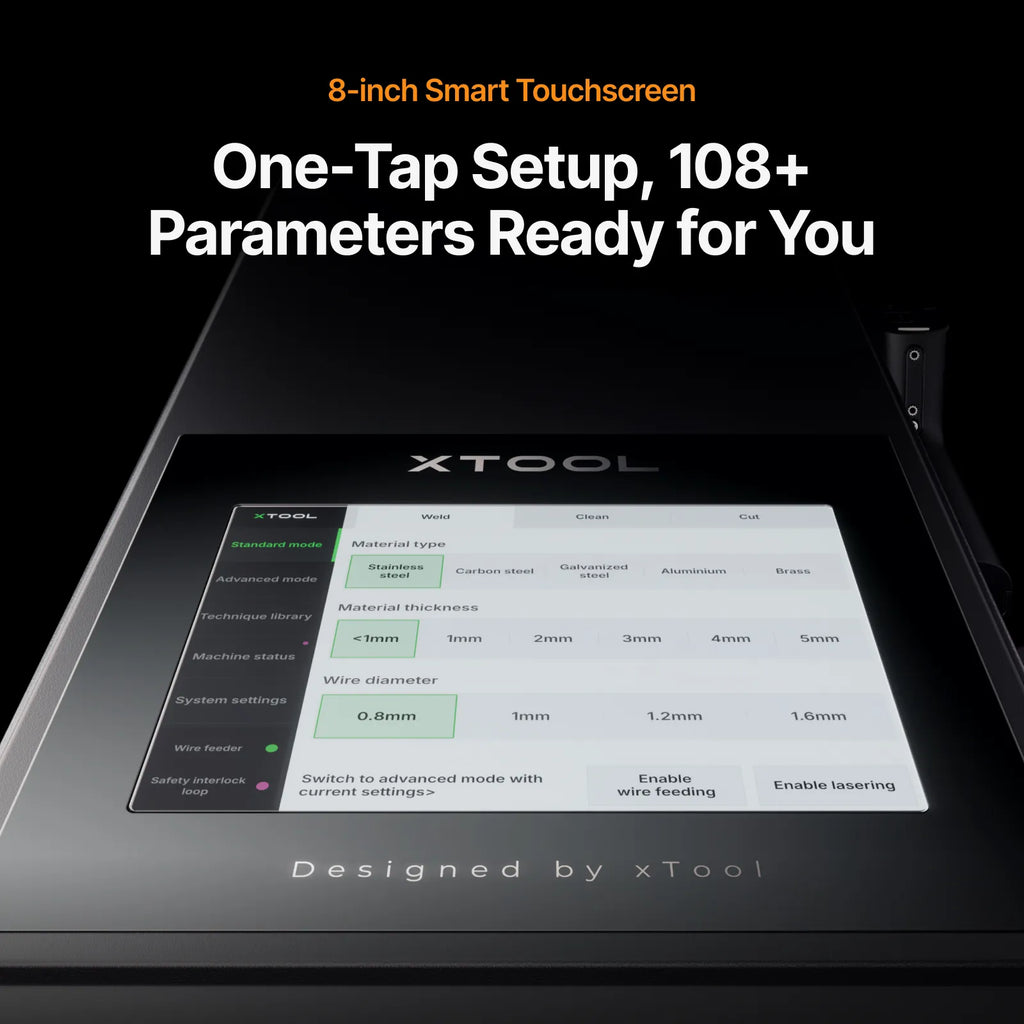

📺 8-INCH SMART TOUCHSCREEN

Spend less time manually determining settings.

The xTool MetalFab features an 8-inch smart touchscreen with 108+ built-in parameters, allowing operators to quickly access predefined settings for compatible materials and applications.

This makes MetalFab more approachable for users transitioning from traditional welding while still delivering the capabilities businesses need for professional fabrication.

🧵 AUTOMATIC WIRE FEEDING

Need filler material?

MetalFab incorporates an automatic wire-feeding system to support welding applications where filler wire is needed.

Compatible wire diameters include:

• 0.8 mm
• 1.0 mm
• 1.2 mm
• 1.6 mm

The system supports wire-feeding speeds from approximately 2–100 mm/s.

This gives operators additional flexibility for thicker materials, wider gaps, repair welding, and applications where greater weld-seam strength is required.

✨ MORE THAN WELDING

With the appropriate xTool MetalFab accessories and setup, the MetalFab platform can expand beyond standard laser welding.

Compatible workflows can include:

Laser Welding

Create strong, controlled welds on compatible metals using high-powered fiber laser technology.

Weld-Path Cleaning

Clean the welding path and prepare compatible metal surfaces as part of the fabrication process.

Rust & Paint Removal

Compatible MetalFab cleaning accessories can expand the system into additional surface-cleaning applications.

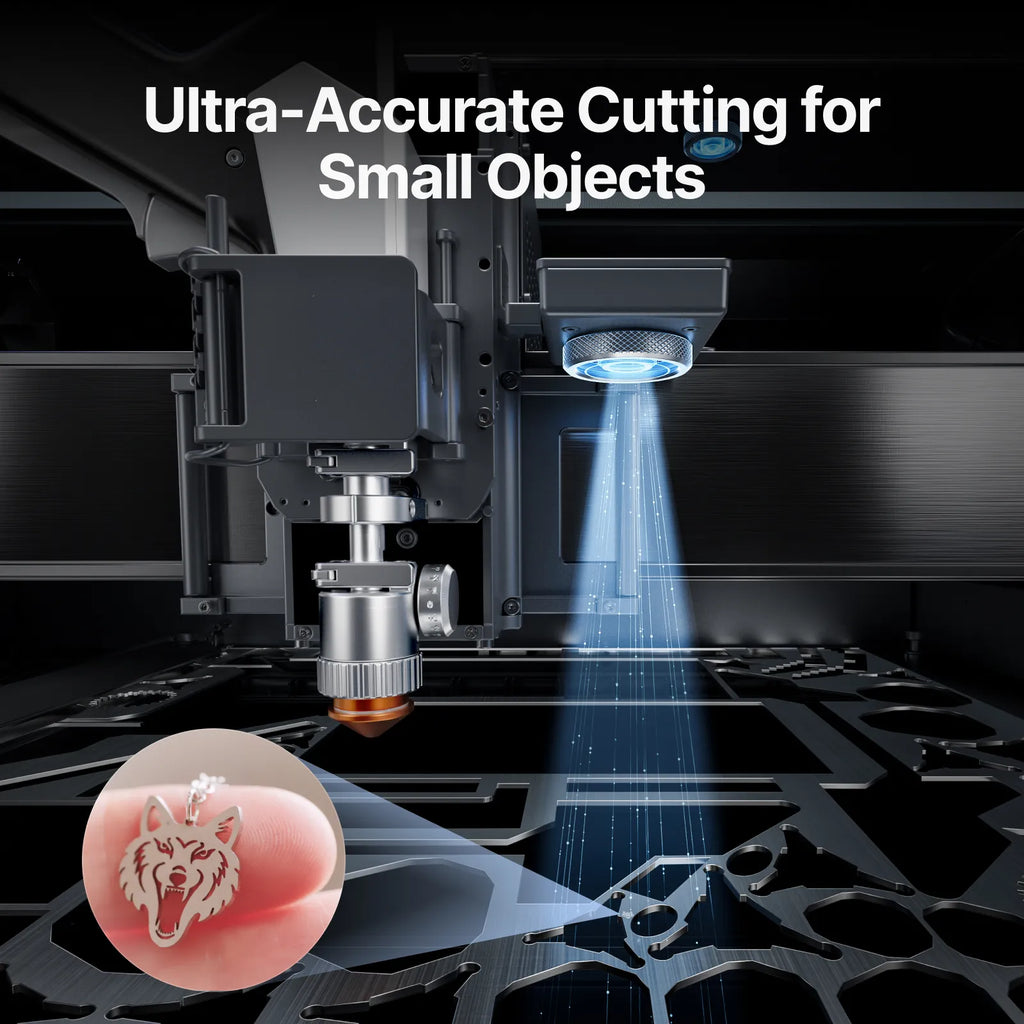

CNC Metal Cutting

Add the compatible xTool MetalFab CNC Cutter to transform your MetalFab ecosystem into an integrated welding and precision metal-cutting solution.

Accessories and CNC Cutter are sold separately unless specifically included in the selected bundle.

🛠️ BUILT FOR REAL BUSINESSES

The xTool MetalFab Laser Welder is an excellent option for:

• Metal fabrication shops
• Welding businesses
• Manufacturing
• Automotive shops
• Custom fabrication
• Sheet metal businesses
• Sign businesses
• Metal furniture manufacturers
• Repair businesses
• Prototype shops
• Product designers
• Makerspaces
• Skilled trades
• Technical training
• Small manufacturing businesses

⭐ xTOOL METALFAB LASER WELDER KEY FEATURES

800W or 1200W Fiber Laser Options
Choose the power level that best matches your fabrication needs.

1080 ± 10 nm Fiber Laser
Powerful fiber laser technology designed for professional metalworking.

Fast Laser Welding
Increase productivity on appropriate thin-metal welding applications.

8-Inch Smart Touchscreen
Simplifies operation and parameter selection.

108+ Built-In Parameters
Quickly access optimized settings for common applications.

550g Ultra-Light Welding Gun
Designed for easier handling during fabrication.

5-Second Quick Release
Efficiently transition between compatible workflows.

Automatic Wire Feeding
Supports multiple common wire diameters for filler-assisted welding.

Expandable MetalFab Ecosystem
Add compatible cleaning accessories and the MetalFab CNC Cutter as your fabrication capabilities grow.

🔩 COMPATIBLE METALS

Depending on power configuration, material specifications, and appropriate processing parameters, MetalFab supports welding of materials including:

• Stainless steel
• Carbon steel
• Low-alloy steel
• Alloy steel
• Tool steel
• High-strength steel
• Galvanized sheet
• Aluminum alloys
• Brass
• Titanium alloys
• Nickel alloys
• Bronze
• Magnesium alloys
• Cobalt-based alloys
• Painted/coated sheet
• And other compatible metals

Always consult xTool's current material and parameter documentation before processing a specific material.

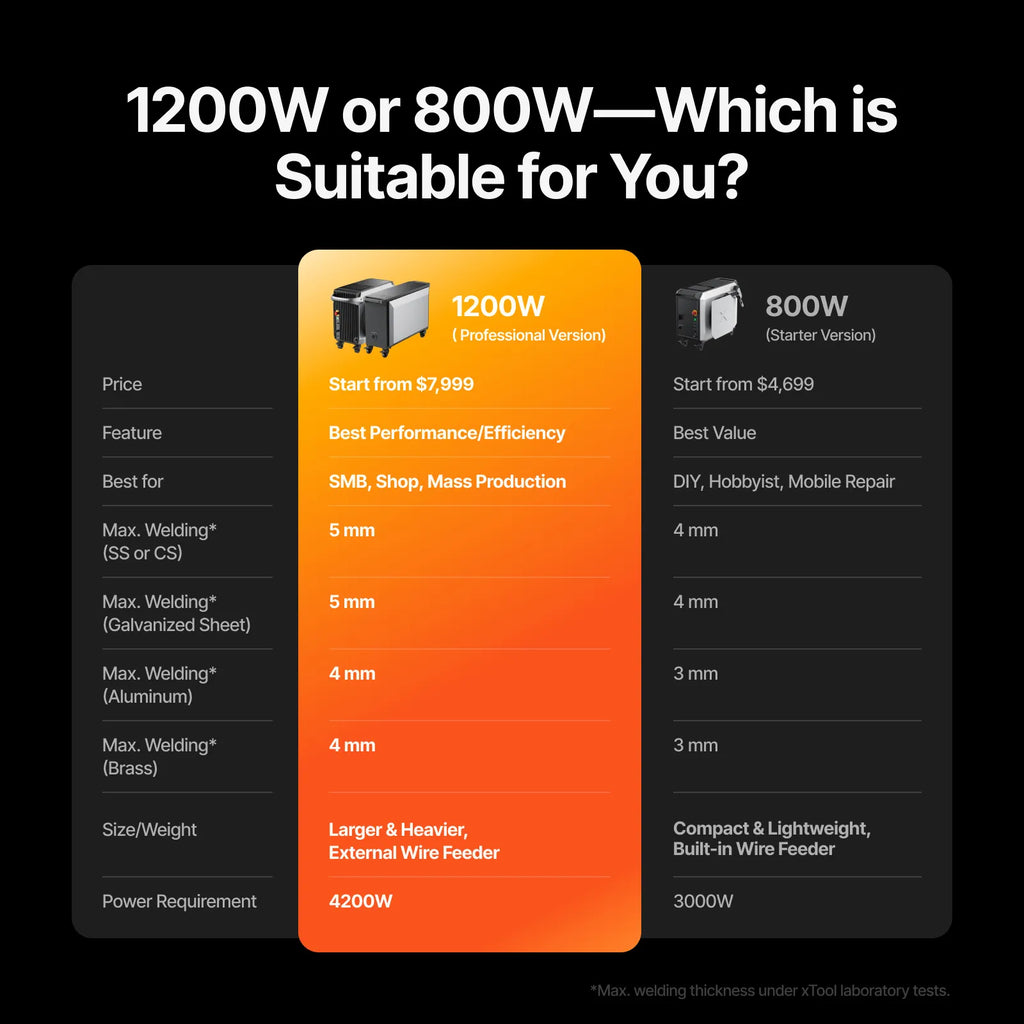

📐 xTOOL METALFAB SPECIFICATIONS

800W LASER WELDER

Laser Type: Fiber Laser

Laser Output Power: 800W

Laser Wavelength: 1080 ± 10 nm

Working Modes: Continuous Wave (CW) / Modulated Wave (MW)

Input Voltage: 200–240V AC

Rated / Full-Load Power: Approximately 3,000W

Recommended U.S. Circuit: Individual branch circuit with 20A or greater current-carrying capacity

Main Unit Dimensions: Approximately 306 × 632.3 × 472 mm

Main Unit Weight: Approximately 31 kg

Wire Feed Speed: 2–100 mm/s

Supported Wire Diameters: 0.8 / 1.0 / 1.2 / 1.6 mm

Maximum Wire Spool Weight: 5 kg

1200W LASER WELDER

Laser Type: Fiber Laser

Laser Output Power: 1200W

Laser Wavelength: 1080 ± 10 nm

Working Modes: Continuous Wave (CW) / Modulated Wave (MW)

Input Voltage: 200–240V AC

Rated Power: Approximately 4,200W

Recommended U.S. Circuit: Individual branch circuit with 25A or greater current-carrying capacity

Electrical installation requirements vary. Always consult a qualified electrician and current xTool installation documentation before installation.

⚠️ PROFESSIONAL CLASS 4 LASER EQUIPMENT

The xTool MetalFab Laser Welder is a Class 4 laser system and requires appropriate professional safety controls.

Users must follow all xTool requirements concerning:

• Laser safety
• Eye and skin protection
• Appropriate PPE
• Controlled laser work areas
• Ventilation
• Laser-generated air contaminants
• Fire prevention
• Electrical installation
• Shielding gas
• Material compatibility
• Equipment maintenance
• Operator training

Direct, reflected, and scattered Class 4 laser radiation can cause serious injury.

MetalFab should only be operated by appropriately trained users in a properly controlled workspace and in accordance with xTool documentation and applicable regulations.

⚡ IMPORTANT ELECTRICAL REQUIREMENTS

MetalFab is not a standard 120V plug-in craft machine.

For U.S. installations:

800W: 200–240V AC, approximately 3,000W with an appropriate dedicated circuit.

1200W: 200–240V AC, approximately 4,200W with an appropriate dedicated circuit.

Outlet and plug configurations can vary by product version.

Consult a qualified electrician before purchasing or installing MetalFab to verify that your facility can meet the electrical requirements for your selected configuration.

💨 SHIELDING GAS REQUIRED

Laser welding requires an appropriate gas supply.

xTool supports gases including:

• Nitrogen
• Argon
• Compressed air for applicable operations

Gas requirements differ depending on the specific welding, cutting, or cleaning process.

Always follow xTool's current requirements for gas purity, pressure, flow rate, regulators, and safe cylinder handling.
